Crimp drilled terminal UNF left threaded

From 9,16 € TTC

Crimp terminal at one end, drilled UNF left threaded body (for pin or split ring) on the other.

Standard boating range.

Aisi316 stainless steel (Marine) - Guaranteed mechanical strength..

Choose your reference

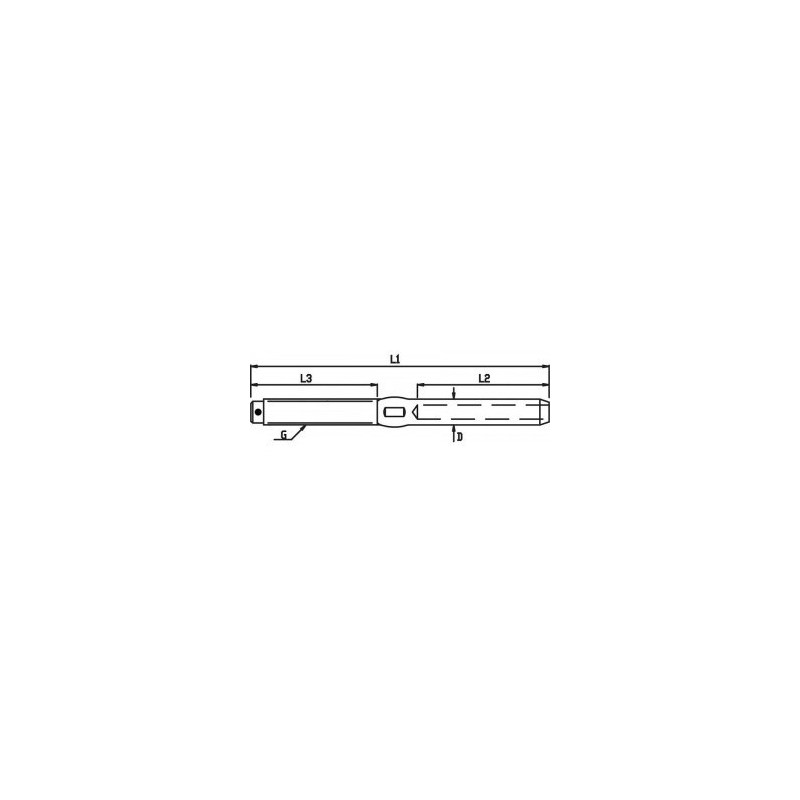

Ref.	D	LH thread	Ø	L1	L2	L3	R. r. theoretical	Unit price	Weight	Quantity
IS72536	6.35	1/4"	3 mm	100.0	38.0	48.0	1300 kg	9,16 €	22 g	- +
IS72546	7.5	1/4"	4 mm	110.0	45.0	48.0	1330 kg	10,34 €	25 g	- +
IS72548	7.5	5/16"	4 mm	117.0	45.0	57.0	1700 kg	10,42 €	38 g	- +
IS72558	9.00	5/16"	5 mm	125.0	51.0	57.0	2200 kg	11,47 €	40 g	- +
IS72550	9.00	3/8"	5 mm	130.0	51.0	63.0	2400 kg	12,24 €	53 g	- +
IS72560	12.58	3/8"	6 mm	145.0	64.0	63.0	3400 kg	20,22 €	84 g	- +
IS72561	12.58	7/16"	6 mm	157.0	64.0	68.0	4600 Kg	21,32 €	100 g	- +
IS72562	12.58	1/2"	6 mm	162.0	64.0	80.0	5400 kg	22,22 €	108 g	- +
IS72571	14.20	7/16"	7 mm	162.0	70.0	68.0	4600 Kg	27,52 €	127 g	- +
IS72572	14.20	1/2"	7 mm	170.0	70.0	80.0	6100 Kg	29,29 €	140 g	- +
IS72582	16.00	1/2"	8 mm	185.0	83.0	80.0	6100 Kg	35,83 €	192 g	- +
IS72586	16.00	5/8"	8 mm	203.0	83.0	100.0	8700 kg	37,48 €	259 g	- +
IS72506	17.80	5/8"	10 mm	212.0	89.0	100.0	9700 kg	46,40 €	301 g	- +
IS72500	17.80	3/4"	10 mm	230.0	89.0	120.0	9700 kg	61,55 €	391 g	- +
IS72542	25.00	7/8"	14 mm	308.0	140.0	140.0	15900 Kg	98,51 €	787 g	- +
IS72565	28.00	1"	16 mm	355.0	160.0	170.0	19400 Kg	132,56 €	1260 g	- +
IS72597	34.50	1-1/8"	19 mm	425.0	200.0	180.0	27600 kg	276,13 €	2100 g	- +
IS72523	40.50	1-1/4"	22 mm	480.0	230.0	200.0	34600 kg	409,88 €	3130 g	- +
IS72566	46.00	1 3/8"	26 mm	550.0	280.0	220.0	42400 kg	516,94 €	4700 g	- +
IS72520	21.40	3/4''	12 mm	265.0	120.0	120.0	14200 Kg	71,04 €	486 g	- +
