From 84,62 € TTC
84,62 €
Fork end for rope, in anodized "asphalt" ALUMINIUM.
Use to make a shroud (for example) without causing a twist in the rope during assembly / tensioning.
The small "wheel" inside the part is free to rotate around the rope axis.
Can be used with all types of ropes, but especially designed to give maximum performance to aDyneema.
Approved by Gleistein Ropes.
Ø4 to 6mm rope. Beyond that, on request.
ROPELINE RANGE
Availability date: 06/18/2015

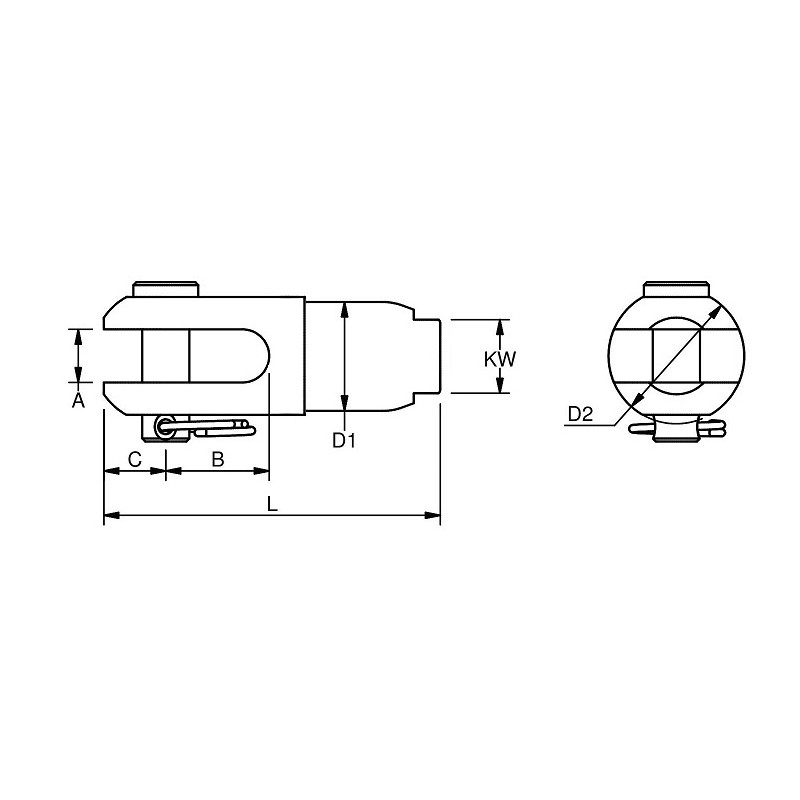

| Ref. | A | B | C | D1 | D2 | Ø | KW | L | R. r. theoretical | Shaft Ø | Unit price | Weight | Quantity | Buy |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IS57124-AL | 9.0 | 17.5 | 10.5 | 20.0 | 23.0 | 4 mm | 14 | 57.0 | 2800 kg | 8.0 | 84,62 € | 45 g | ||
| IS57125-AL | 11.0 | 23.0 | 14.0 | 24.0 | 29.0 | 5 mm | 17 | 79.0 | 4300 kg | 11.1 | 100,03 € | 96 g | ||
| IS57126-AL | 14.0 | 27.0 | 16.0 | 27.0 | 35.0 | 6 mm | 21 | 90.0 | 6100 Kg | 12.7 | 129,89 € | 136 g |
