From 53,69 € TTC

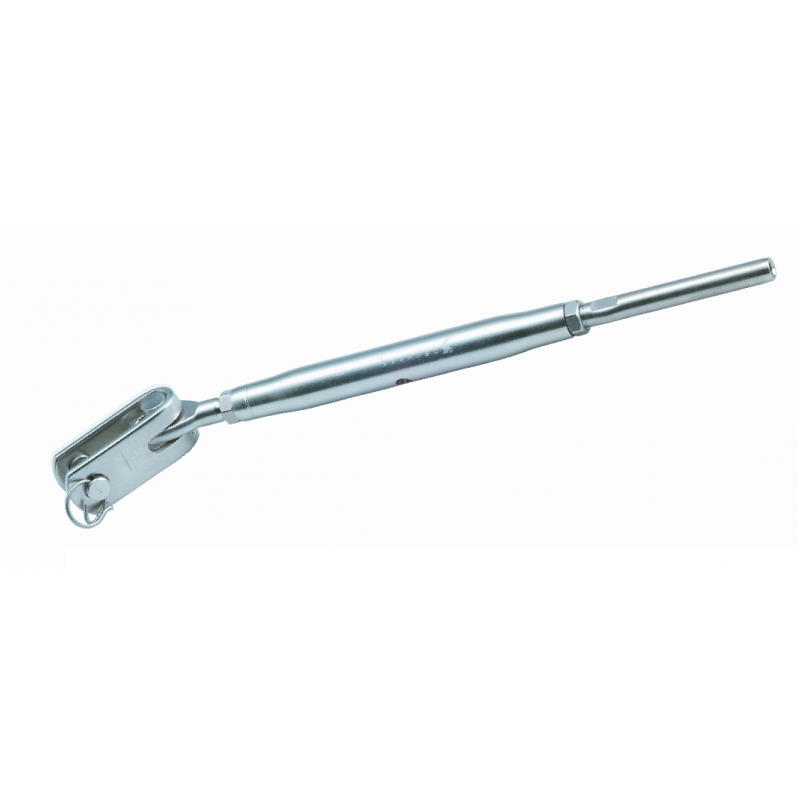

Stainless steel closed body turnbuckle (tensioner), equipped with a toggle fork and a crimp terminal.
Mounting secured by counter-nuts.
Avoid using this version on a boat, prefer thebronze open bodieswhich are specially designed.
Metric threads - Guaranteed mechanical strength.
Availability date:
Closed turnbuckle toggle fork / terminal
Stainless steel closed body turnbuckle (tensioner), equipped with a toggle fork and a crimp terminal.
Mounting secured by counter-nuts.
Avoid using this version on a boat, prefer thebronze open bodieswhich are specially designed.
Metric threads - Guaranteed mechanical strength.
Recipient :
* Required fields
or Cancel

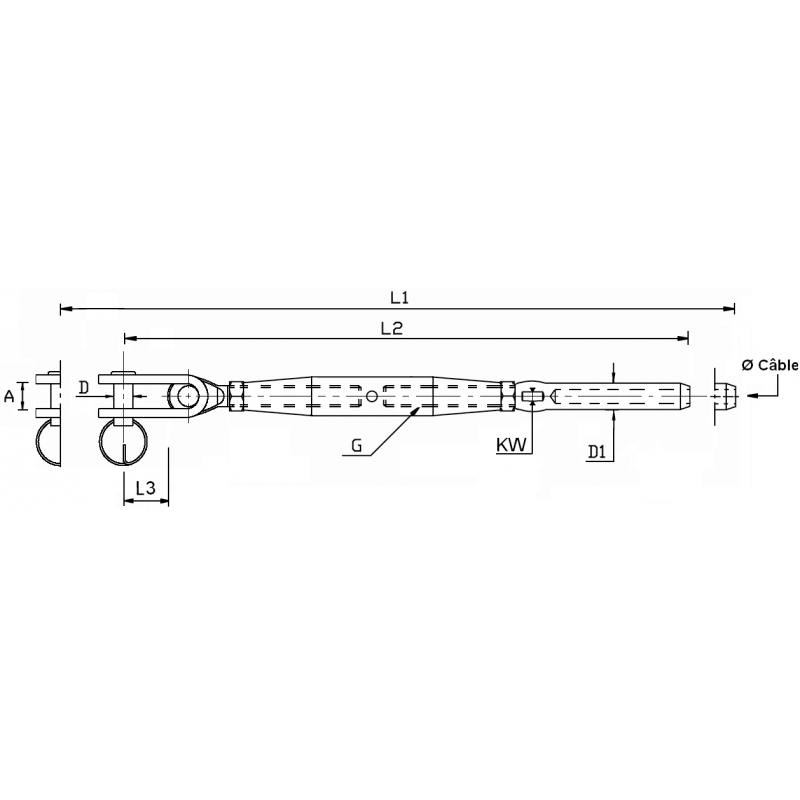

| Ref. | A | D | D1 | cable Ø | KW | L1 | L2 | L3 | G | R. r. theoretical | Unit price | Weight | Quantity | Buy |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IS67948 | 10.0 | 8.0 | 7.5 | 4mm | 6 | 310 | 240 | 20.0 | M8 | 1700 kg | 53,69 € | 164 g | ||
| IS67950 | 12 0 | 9.5 | 9.0 | 5mm | 7 | 361 | 278 | 26.0 | M10 | 2500 kg | 64,42 € | 282 g | ||
| IS67962 | 18.0 | 12.7 | 12.6 | 6mm | 11 | 448 | 340 | 35.0 | M12 | 5100 kg | 100,96 € | 648 g | ||
| IS67972 | 18.0 | 12.7 | 14.2 | 7mm | 12 | 456 | 348 | 35.0 | M12 | 5100 kg | 109,33 € | 680 g | ||
| IS67982 | 18.0 | 12.7 | 16.0 | 8mm | 14 | 471 | 363 | 35.0 | M12 | 5100 kg | 120,01 € | 732 g | ||
| IS67986 | 20.0 | 16.0 | 16.0 | 8mm | 14 | 566 | 436 | 41.0 | M16 | 8000 kg | 180,66 € | 1052 g | ||
| IS67920 | 24.0 | 19.0 | 17.8 | 10mm | 15 | 642 | 488 | 45.0 | M20 | 9700 kg | 318,71 € | 1690 g | ||
| IS67922 | 24.0 | 19.0 | 20.0 | 12mm | 17 | 661 | 507 | 45.0 | M20 | 11400 kg | 297,05 € | 1790 g | ||
| IS67923 | 24.0 | 19.0 | 21.4 | 12mm | 17 | 677 | 523 | 45.0 | M20 | 14200 Kg | 302,68 € | 1790 g | ||
| IS67942 | 26.0 | 22.0 | 25.0 | 14mm | 22 | 808 | 627 | 49.0 | M22 | 15900 Kg | 626,88 € | 5000 g | ||
| IS67924 | 29.0 | 25.4 | 28.0 | 16mm | 25 | 963 | 730 | 50.0 | M24 | 19400 Kg | 775,04 € | 7420 g | ||
| IS67927 | 34.0 | 28.0 | 34.5 | 19mm | 30 | 1071 | 836 | 60.0 | M27 | 25500 kg | 1 522,25 € | 9900 g | ||
| IS67930 | 40.0 | 32.0 | 40.5 | 22mm | 36 | 1193 | 931 | 69.0 | M30 | 31000 kg | 1 490,72 € | 13850 g | ||
| IS67926 | 44.0 | 36.0 | 46.0 | 26 mm | 41 | 1319 | 1045 | 77.0 | M36 | 43000 kg | 2 086,38 € | 17110 g |
