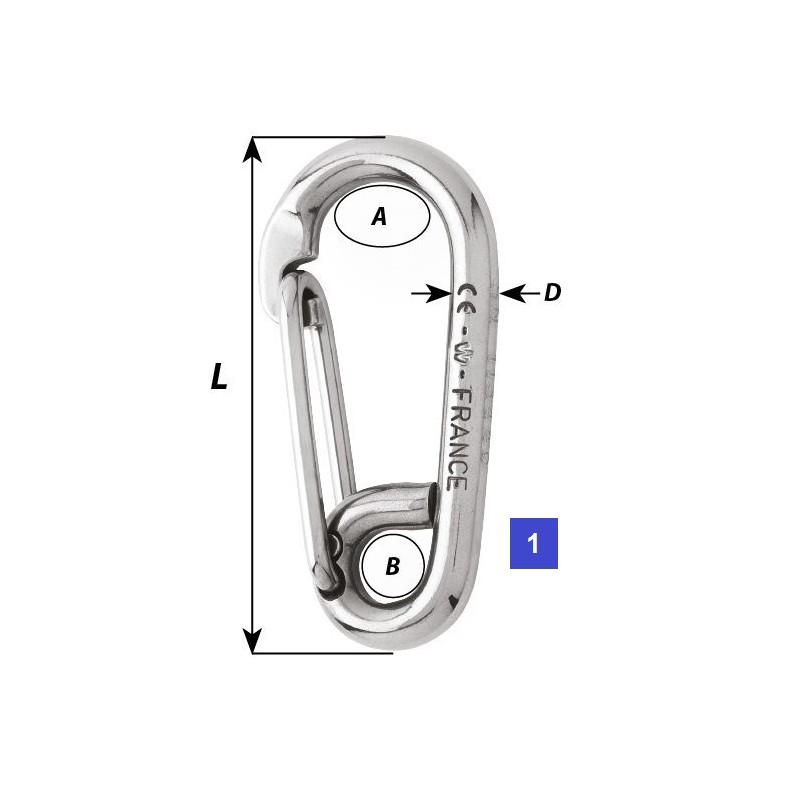

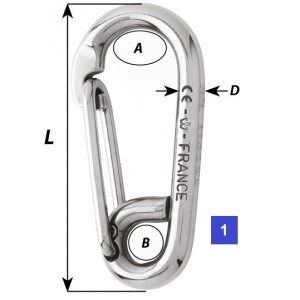

Symmetrical
Stainless steel 316L
Symmetrical shape
With eye for strap or splice
Maximum working load (MWL): to be considered only for industrial applications
All types of fast manoeuvres

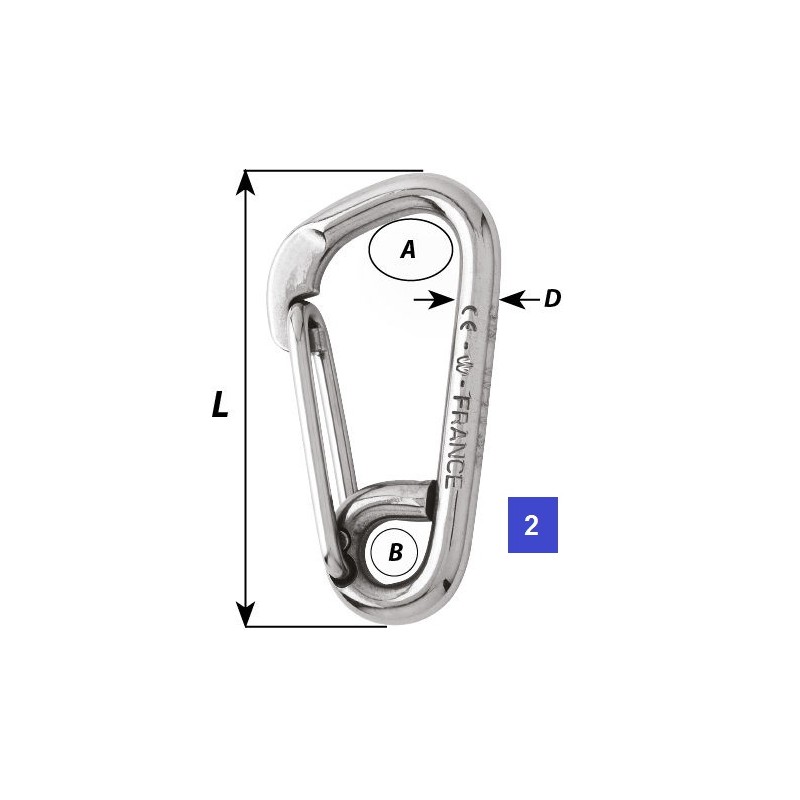

Asymmetric
316L stainless steel
Asymmetrical shape for optimal load transfer
With eye for belt passage
All types of quick manoeuvres
Integrated with Wichard harness backups

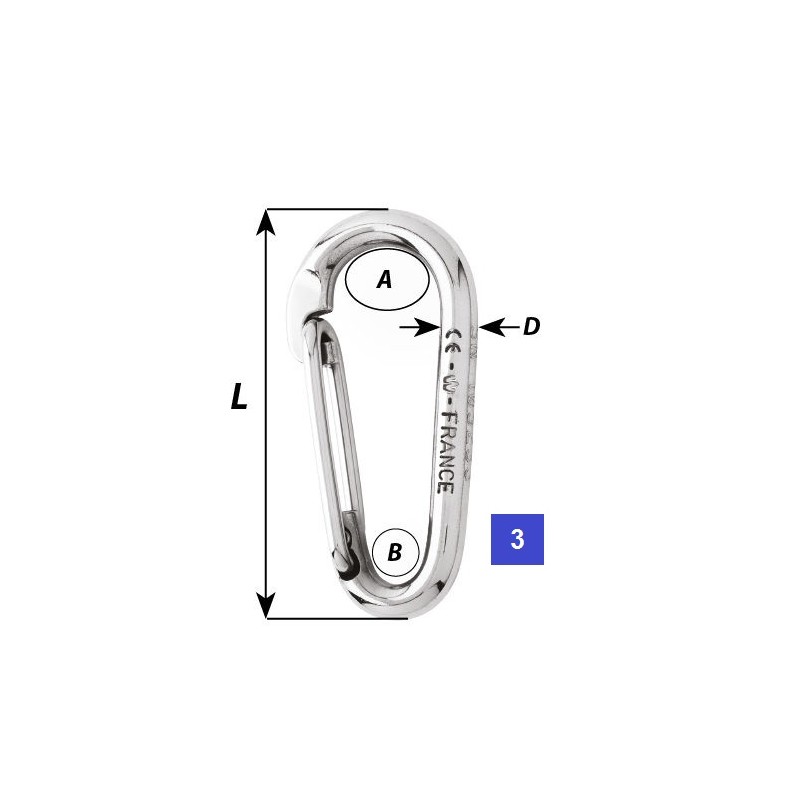

Without eye
316L stainless steel
Symmetrical shape without eye
All types of quick manoeuvres
Fixings
Availability date:
Carbin hook
Symmetrical
Stainless steel 316L
Symmetrical shape
With eye for strap or splice
Maximum working load (MWL): to be considered only for industrial applications
All types of fast manoeuvres
Asymmetric
316L stainless steel
Asymmetrical shape for optimal load transfer
With eye for belt passage
All types of quick manoeuvres
Integrated with Wichard harness backups
Without eye
316L stainless steel
Symmetrical shape without eye
All types of quick manoeuvres
Fixings
Recipient :
* Required fields
or Cancel

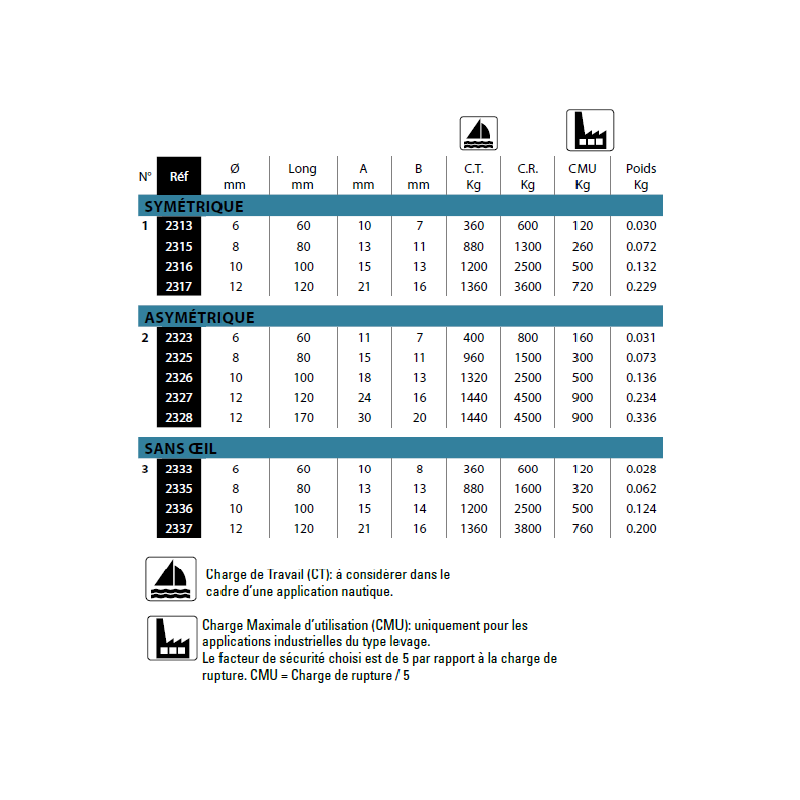

Ref. | A | B | Workload | Ø | Length | R. r. theoretical | Unit price | Weight | Quantity | Buy |
---|---|---|---|---|---|---|---|---|---|---|
2313 | 10 | 7 | 360 kg | 6 | 60 | 600 kg | 10,86 € | 30 g | ||
2315 | 13 | 11 | 880 kg | 8 | 80 | 1300 kg | 14,30 € | 72 g | ||
2316 | 15 | 13 | 1200 kg | 10 | 100 | 2500 kg | 19,38 € | 132 g | ||
2317 | 21 | 16 | 1360 kg | 12 | 120 | 3600 kg | 33,36 € | 229 g | ||
2323 | 11 | 7 | 400 kg | 6 | 60 | 800 kg | 11,93 € | 31 g | ||
2325 | 15 | 11 | 960 kg | 8 | 80 | 1500 kg | 15,86 € | 73 g | ||
2326 | 18 | 13 | 1320 kg | 10 | 100 | 2500 kg | 21,23 € | 136 g | ||
2327 | 24 | 16 | 1440 kg | 12 | 120 | 4500 kg | 36,68 € | 234 g | ||
2328 | 30 | 20 | 1440 kg | 12 | 170 | 4500 kg | 41,71 € | 336 g | ||
2333 | 10 | 8 | 360 kg | 6 | 60 | 600 kg | 9,85 € | 28 g | ||
2335 | 13 | 13 | 880 kg | 8 | 80 | 1600 kg | 13,22 € | 62 g | ||
2336 | 15 | 14 | 1200 kg | 10 | 100 | 2500 kg | 17,54 € | 124 g | ||
2337 | 21 | 16 | 1360 kg | 12 | 120 | 3800 kg | 32,57 € | 200 g |
