From 22,03 € TTC
22,03 €
toggle fork to accommodate various working angles - Metric right-hand thread.
Certified mechanical strength.
316 Grade stainless steel
Availability date: 06/18/2015
Metric threaded toggle fork - right pitch
toggle fork to accommodate various working angles - Metric right-hand thread.
Certified mechanical strength.
316 Grade stainless steel
Recipient :
* Required fields
or Cancel

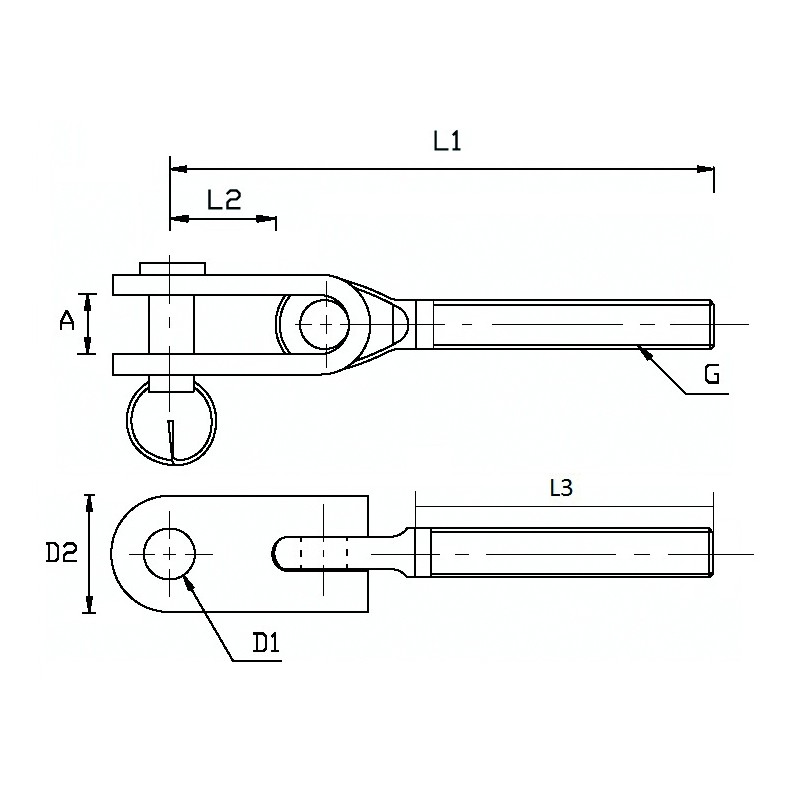

| Ref. | A | D1 | D2 | LH thread | L1 | L2 | L3 | R. r. theoretical | Unit price | Weight | Quantity | Buy |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IS44006 | 8.0 | 6 | 14.0 | M6 | 88.0 | 16.0 | 47.0 | 1200 kg | 22,03 € | 55 g | ||
| IS44008 | 10.0 | 8.00 | 18.0 | M8 | 105.0 | 25.0 | 57.0 | 2200 kg | 27,56 € | 90 g | ||
| IS44010 | 12 0 | 9.5 | 22.0 | M10 | 128.0 | 27.0 | 63.0 | 3500 kg | 35,36 € | 160 g | ||
| IS44012 | 18.0 | 12.7 | 30.0 | M12 | 154.0 | 33.0 | 80.0 | 5100 kg | 58,94 € | 315 g | ||
| IS44014 | 18.0 | 12.7 | 30.0 | M14 | 172.0 | 33.0 | 90.0 | 6900 kg | 93,74 € | 345 g | ||
| IS44016 | 20.0 | 16.0 | 35.0 | M16 | 199.0 | 41.0 | 100.0 | 9400 Kg | 100,43 € | 650 g | ||
| IS44020 | 24.0 | 19.0 | 40.0 | M20 | 230.0 | 43.0 | 120.0 | 14 700 kg | 188,28 € | 1200 g |
