From 55,07 € TTC

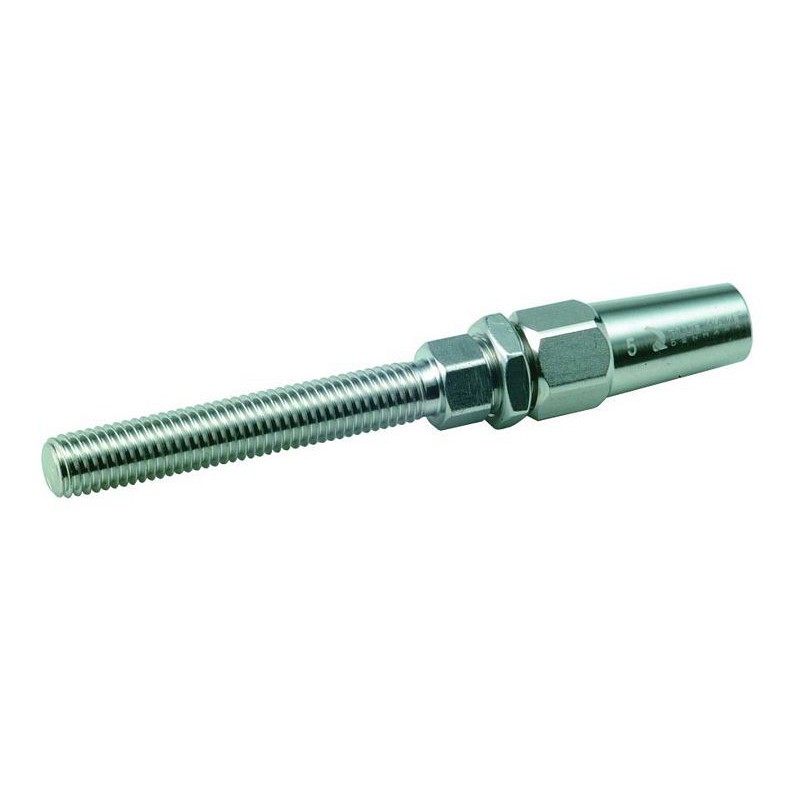

Swageless cable terminal on one side, left metric threaded shaft on the other.
Allows adaptation and assembly on site without any tools other than wrenches.
Can be used for stainless steel (1*19) , (7*7) , (7*19) cables.
316 Stainless steel - Certified mechanical strength !
Available in "UNF thread" version - contact us.
Availability date: 06/18/2015
| Ref. | NV1 | LH thread | Ø | L1 | L2 | L3 | NV | R. r. theoretical | Unit price | Weight | Quantity | Buy |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IS51536 | 12 | M6 | 3 mm | 85.0 | 63.0 | 47.0 | 10 | 750 kg | 55,07 € | 45 g | ||
| IS51546 | 14 | M6 | 4 mm | 92.0 | 63.0 | 47.0 | 12 | 1200 kg | 62,93 € | 56 g | ||
| IS51548 | 14 | M8 | 4 mm | 102.0 | 72.0 | 57.0 | 12 | 1500 kg | 62,93 € | 70 g | ||
| IS51558 | 16 | M8 | 5 mm | 111.0 | 78.0 | 57.0 | 13 | 2180 kg | 69,52 € | 90 g | ||
| IS51550 | 16 | M10 | 5 mm | 117.0 | 84.0 | 63.0 | 13 | 2180 kg | 72,11 € | 100 g | ||
| IS51560 | 19 | M10 | 6 mm | 128.0 | 90.0 | 63.0 | 16 | 3500 kg | 94,07 € | 155 g | ||
| IS51562 | 19 | M12 | 6 mm | 145.0 | 107.0 | 80.0 | 16 | 3700 kg | 96,78 € | 170 g | ||
| IS51572 | 21 | M12 | 7 mm | 153.0 | 110.0 | 80.0 | 18 | 4700 kg | 130,75 € | 220 g | ||
| IS51574 | 21 | M14 | 7 mm | 162.0 | 119.0 | 89.0 | 18 | 4700 kg | 138,29 € | 250 g | ||
| IS51582 | 24 | M12 | 8 mm | 162.0 | 113.0 | 80.0 | 19 | 5100 kg | 149,86 € | 285 g | ||
| IS51584 | 24 | M14 | 8 mm | 171.0 | 122.0 | 89.0 | 19 | 5600 kg | 157,57 € | 310 g | ||
| IS51586 | 24 | M16 | 8 mm | 182.0 | 133.0 | 100.0 | 19 | 5600 kg | 157,24 € | 400 g | ||
| IS51506 | 27 | M16 | 10 mm | 190.0 | 139.0 | 100.0 | 24 | 8300 kg | 193,07 € | 480 g | ||
| IS51520 | 32 | M20 | 12 mm | 227.0 | 159.0 | 120.0 | 27 | 12000 kg | 320,09 € | 790 g | ||
| IS51542 | 36 | M22 | 14 mm | 264.0 | 191.0 | 140.0 | 30 | 17000 kg | 347,42 € | 1240 g | ||
| IS51564 | 41 | M24 | 16 mm | 308.0 | 227.0 | 170.0 | 32 | 21000 kg | 407,17 € | 1750 g |
