From 23,69 € TTC
316 stainless steel turnbuckle (or tensioner), closed body, equipped with a fixed welded fork and a threaded eye.
Metric thread.
Certified mechanical strength.
Availability date: 06/18/2015

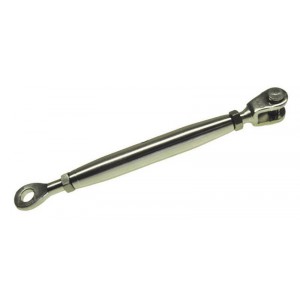

Stainless steel closed body turnbuckle with fixed fork/eye
316 stainless steel turnbuckle (or tensioner), closed body, equipped with a fixed welded fork and a threaded eye.
Metric thread.
Certified mechanical strength.
Recipient :
* Required fields
or Cancel
| Ref. | A1 | A2 | D1 | D2 | D3 | LH thread | L1 | L2 | L3 | R. r. theoretical | Unit price | Weight | Quantity | Buy |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IS42405 | 7.5 | 3.0 | 5.0 | 5.5 | 12.0 | M5 | 188.0 | 129.0 | 12.0 | 800 kg | 23,69 € | 42 g | ||
| IS42406 | 7.5 | 4.0 | 5.0 | 6.5 | 14.0 | M6 | 206.0 | 138.0 | 12.0 | 1000 kg | 26,99 € | 63 g | ||
| IS42408 | 9.5 | 5.0 | 6.0 | 8.5 | 17.0 | M8 | 244.0 | 164.0 | 13.0 | 1600 kg | 36,44 € | 130 g | ||
| IS42410 | 11.0 | 6.0 | 8.0 | 10.5 | 21.0 | M10 | 271.0 | 188.0 | 15.0 | 3200 kg | 46,78 € | 219 g | ||
| IS42412 | 14.5 | 8.0 | 12.0 | 13.0 | 25.0 | M12 | 343.0 | 235.0 | 25.0 | 5100 kg | 78,07 € | 440 g | ||
| IS42414 | 14.5 | 9.0 | 12.0 | 13.0 | 28.0 | M14 | 381.0 | 262.0 | 25.0 | 6900 kg | 104,99 € | 600 g | ||
| IS42416 | 18.0 | 10.0 | 14.0 | 14.5 | 31.0 | M16 | 426.0 | 296.0 | 33.0 | 9400 Kg | 139,40 € | 856 g | ||
| IS42420 | 24.0 | 15.0 | 19.0 | 19.5 | 40.0 | M20 | 518.0 | 364.0 | 50.0 | 14000 kg | 186,53 € | 1693 g | ||
| IS42422 | 30.0 | 18.0 | 22.0 | 23.0 | 47.0 | M22 | 625.0 | 444.0 | 57.0 | 15200 kg | 753,82 € | 3985 g | ||
| IS42424 | 30.0 | 20.0 | 25.4 | 26.0 | 53.0 | M24 | 741.0 | 508.0 | 62.0 | 17700 kg | 900,97 € | 5800 g |
