Flexible stainless steel 7 strand / 7 wire cable - white PVC coated UV treated

From 1,28 € TTC

316 stainless steel 7x7 flexible cable, white PVC coated, UV treated

Guaranteed mechanical strength

Use: sail boat railings, guardrails, etc.

Ordering is easy :

Enter your 'cable length‘ in millimetres in the field just under "from --€ INCL VAT"
Click "Save" (just underneath)
Go to the specifications table below to select the cable and length you need and click the shopping cart.
Well done! Your cable is now in your cart, repeat the procedure if you want to add a different length cable.

INOX SYSTEM cable technical specifications :

It is the standard multi-purpose cable; an excellent compromise between flexibility, breaking load and elongation. The applications for the 7*7 are vast; guardrail rails, slings with thimbles + sleeves, crimped slings. However, this rope should not be used for bracing and heavy duty assemblies or a large bending radius. (Pulleys)

Possible assembly:

Sleeve / Crimped terminal / Swageless terminal

General information

When choosing the type of cable to use, the main data to consideration is:

. The breaking load
. The elongation
. Flexibility
. The look

It is the study of this data that will determine the diameter, the cable type and accessory or terminal sizing.

Depending on the constraints and the assembly type, one of these specifications should be chosen as a priority:

For a guardrail type application, the breaking load is usually greater than necessary, it is therefore the capacity of the supports to take the load and the aesthetic look that will determine the cable cross section and type.
For industrial or marine applications, the breaking load (including the appropriate safety factor) and the elongation that will determine the cable type choice.

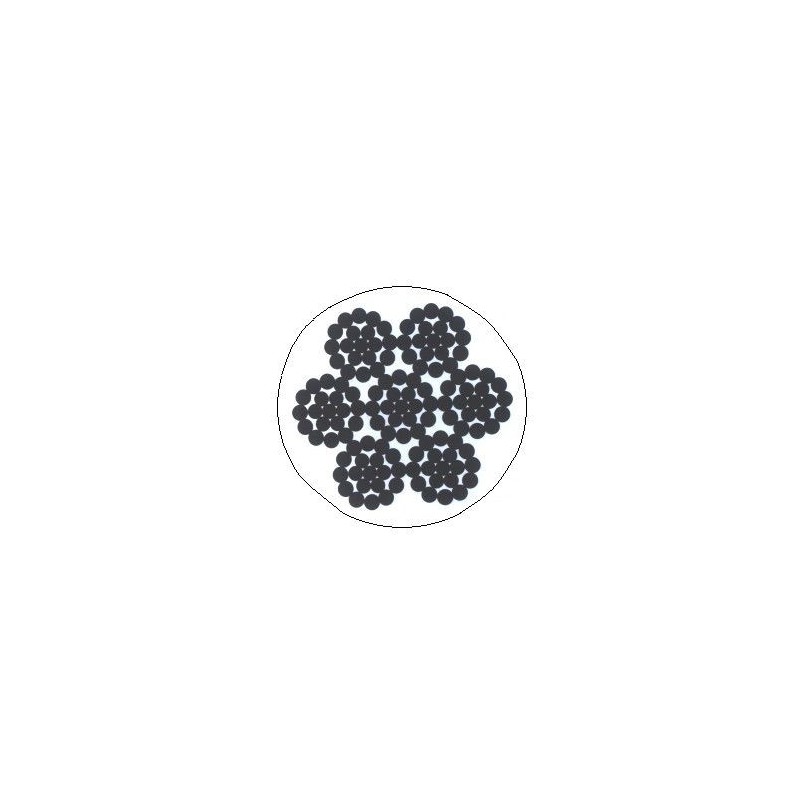

Cable composition

Strand: Set of stainless steel metal wires wound around a central wire.

Cable: A set of strands wound around a central metal core.

Tips when handling wire rope:

Avoid transporting the cable reel using your forklift truck as fork edges may damage it.
If you don’t want your cable to be altered by condensation during storage: Protect it using a canvas.
Make sure there are no works in the vicinity, as dust particles invisible to the naked eye may be deposited on the strands and oxidise them over time.
When your cable is wound into a reel, unwind it using a reel stand or a support shaft.
If the cable has been deformed during the winding process, it will need to return to its original shape after cutting.
Check frequently and if necessary passivate with the appropriate product.
Also avoid dragging the cable on the ground, as well as any contact with oxidisable steel and other materials.

Print
Send to a friend
Send to a friend
Flexible stainless steel 7 strand / 7 wire cable - white PVC coated UV treated

316 stainless steel 7x7 flexible cable, white PVC coated, UV treated

Guaranteed mechanical strength

Use: sail boat railings, guardrails, etc.

Ordering is easy :

Enter your 'cable length‘ in millimetres in the field just under "from --€ INCL VAT"

Click "Save" (just underneath)

Go to the specifications table below to select the cable and length you need and click the shopping cart.

Well done! Your cable is now in your cart, repeat the procedure if you want to add a different length cable.
Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel

cable length ^* (in Millimeter)

Choose your reference

Ref.	Ø	R. r. theoretical	Unit price	Weight	Quantity
IS34703	3 mm sheathed 5 mm	555 kg	1,28 €	55 g	- +
IS34704	4 mm sheathed 6 mm	916 kg	2,18 €	88 g	- +
IS34705	5 mm sheathed 7 mm	1435 kg	3,31 €	126 g	- +
IS34706	6 mm sheathed 8 mm	2240 kg	5,09 €	175 g	- +
IS34725	2.5 mm sheathed 4.0 mm	385 kg	0,96 €	38 g	- +
