From 18,50 € TTC
18,50 €

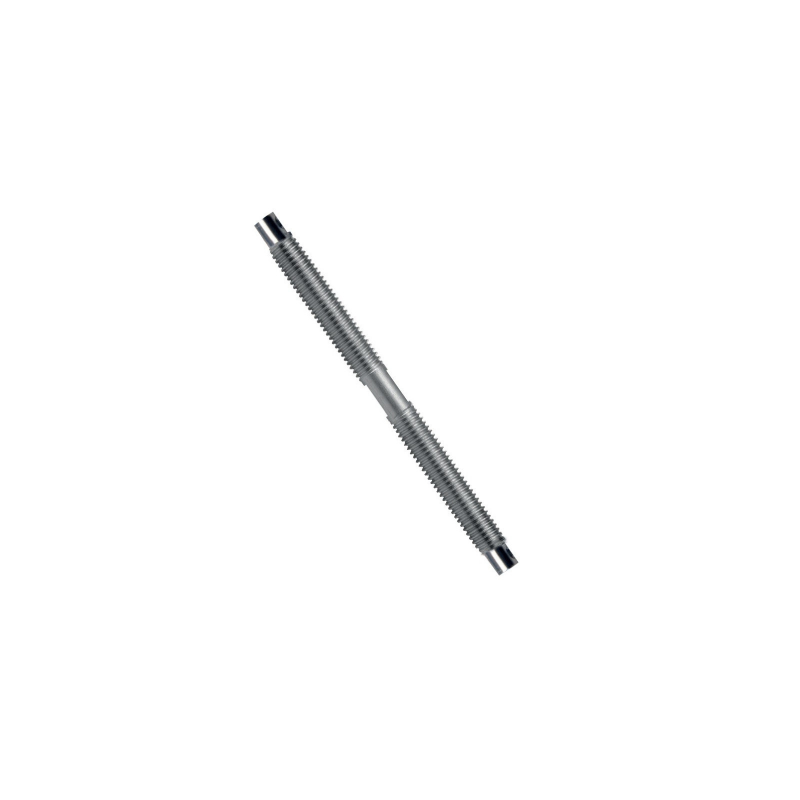

UNF threaded rod with a right pitch and a left pitch .
(used to reverse the thread direction at the end of a turnbuckle). Drill holes for safety pins included.
316L stainless steel
Availability date: 06/18/2015

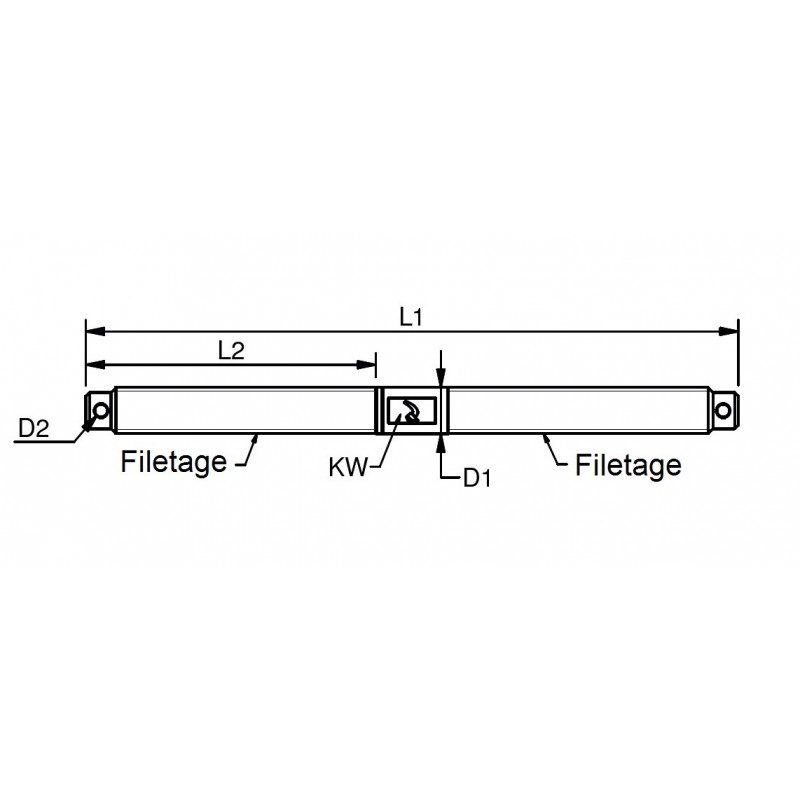

| Ref. | D1 | D2 | KW | L1 | L2 | D Thread | R. r. theoretical | Unit price | Weight | Quantity | Buy |
|---|---|---|---|---|---|---|---|---|---|---|---|
| IS41808_UNF | 8.0 | 2.8 | 6 | 130.0 | 57.0 | 5/16" | 2200 kg | 18,50 € | 48 g | ||
| IS41810_UNF | 10.0 | 2.8 | 8 | 142.0 | 63.0 | 3/8" | 3400 kg | 19,87 € | 78 g | ||
| IS41812_UNF | 13.0 | 3.5 | 11 | 180.0 | 80.0 | 1/2" | 6100 Kg | 25,78 € | 180 g |
